T 16000 CHIPEO

Taramps T 16.000 CHIPEO Technical Specifications

Specification Details
Operation Class Class D
Number of Channels 01 Channel (Monoblock)
Maximum Power Output

16,000 Watts RMS @ 1 Ohm (14.4VDC)



9,920 Watts RMS @ 2 Ohms (14.4VDC)

Frequency Response 5 Hz – 5 kHz (-3dB)
Input Sensitivity 220mV – 4.0V RMS
Signal-to-Noise Ratio > 90 dB
Input Impedance 10k Ohms
Efficiency 77%
Supply Voltage Range 9 VDC – 17 VDC
Current Consumption Rest: 5.80A | Musical: 824A (@ 14.4VDC)
Power Terminals Dual 2/0 AWG (70 mm²) Power & Ground Inputs
Speaker Output Terminals 7 AWG
Protection System Output Short-Circuit, Ground Short, Low Impedance, Voltage & Thermal Protection
Cooling System Automatic Smart Cooler System
Dimensions (W x H x D) 228 mm x 64 mm x 532 mm (8.98″ x 2.52″ x 20.94″)
Net Weight 7.60 kg (~16.72 lbs)
SKU: T1600 Category:

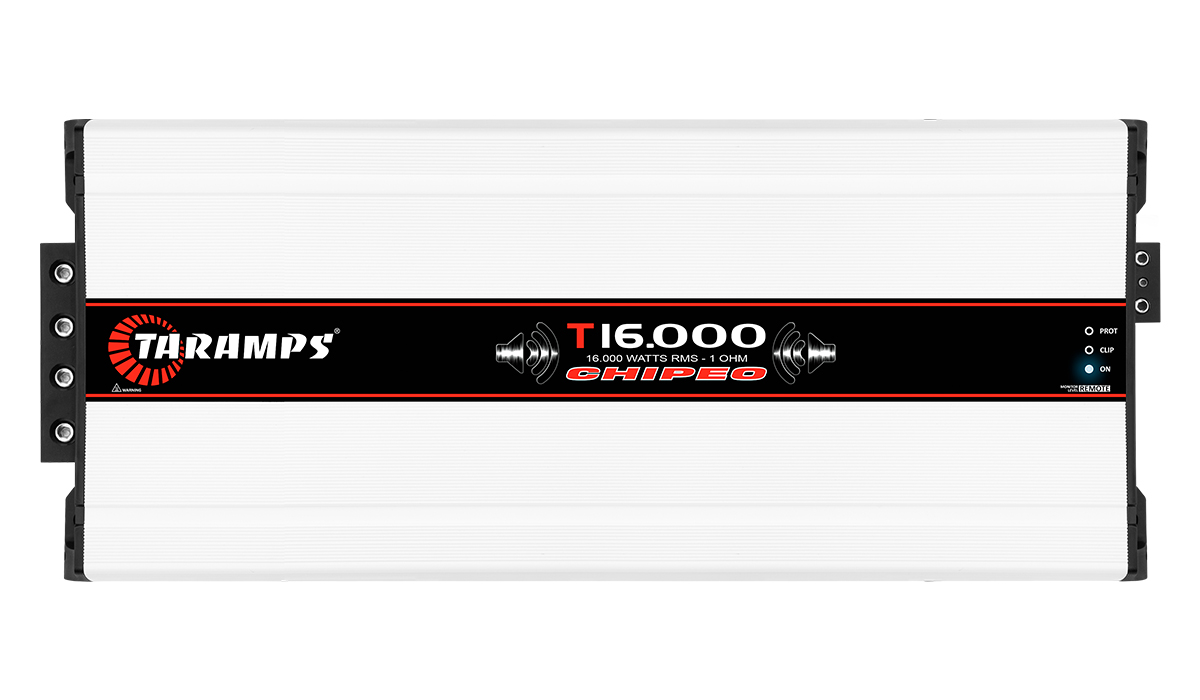

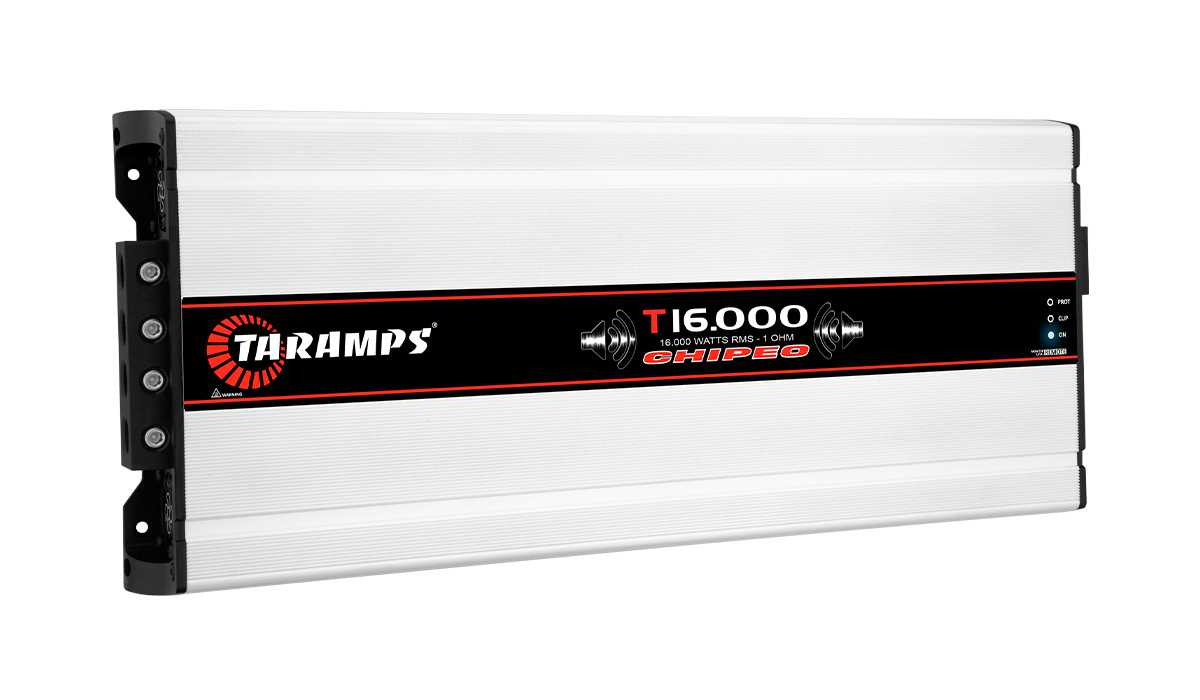

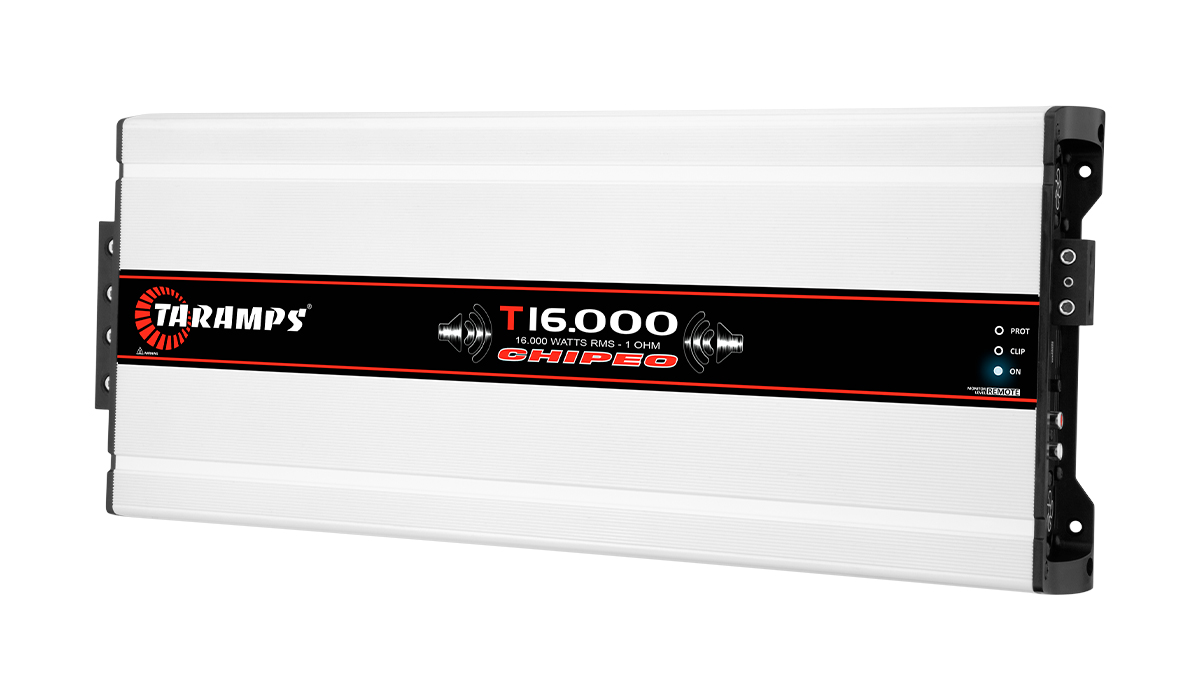

Dominate the Streets with the Taramps T 16.000 CHIPEO High-Power Monoblock Amplifier

Rule the sound walls and SPL competitions with the Taramps T 16.000 CHIPEO, a massive 1-channel monoblock amplifier engineered to deliver an astounding 16,000 Watts RMS. Built with Taramps’ specialized CHIPEO DNA, this high-performance Class D power plant is crafted specifically for extreme car audio builds that require intense current handling, unwavering thermal stability, and maximum sound pressure level (SPL) output.

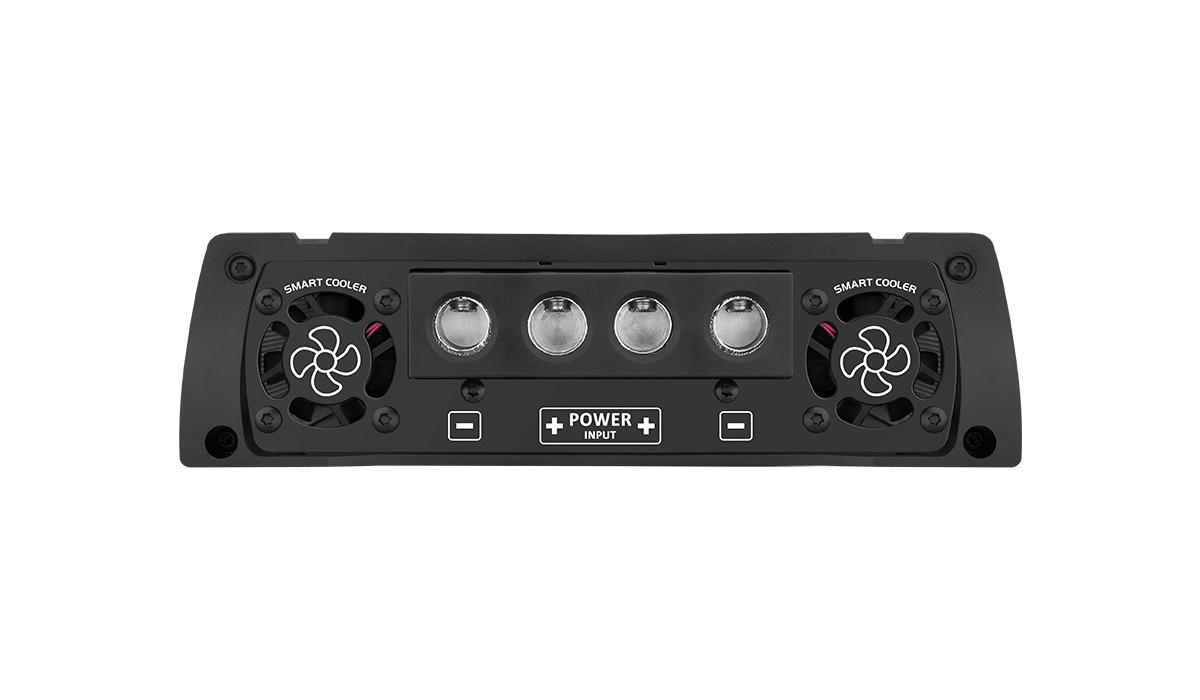

Unmatched Power, Precision Sound, and Total Control Engineered to drive heavy-duty subwoofers, woofers, and high-power mid-bass speaker arrays, the T 16.000 CHIPEO delivers crystal-clear audio reproduction across a broad 5Hz to 5kHz frequency spectrum. Dual 70mm² (2/0 AWG) power inputs ensure uninterrupted current flow, while the quiet Smart Cooler system and heavy-duty chassis dissipate heat effectively during extended high-volume demos.

Key Features:

  • 16,000 Watts RMS Output: Maximum low-frequency force engineered for competition audio systems and high-SPL setups.

  • Wide Frequency Bandwidth: Handles frequencies from 5Hz up to 5kHz for rich sub-bass and chest-thumping mid-range output.
