T 12.000 CHIPEO 0.5 OHM

Taramps T 12.000 CHIPEO 0.5 Ohm Technical Specifications

Specification	Details
Operation Class	Class D
Number of Channels	01 Channel (Monoblock)
Maximum Power Output	12,000 Watts RMS @ 0.5 Ohm (14.4VDC) 7,200 Watts RMS @ 1 Ohm (14.4VDC)
Nominal Impedance	0.5 Ohm
Frequency Response	5 Hz – 5 kHz (-3dB)
High Pass Filter (HPF)	10 Hz – 90 Hz (-12dB/8ª) Variable
Low Pass Filter (LPF)	90 Hz – 5 kHz (-12dB/8ª) Variable
Input Sensitivity	220mV – 4.0V RMS
Signal-to-Noise Ratio	> 90 dB
Efficiency	~78%
Supply Voltage Range	9 VDC – 17 VDC
Current Consumption	Rest: 5.20A \| Musical: 680A (@ 14.4VDC)

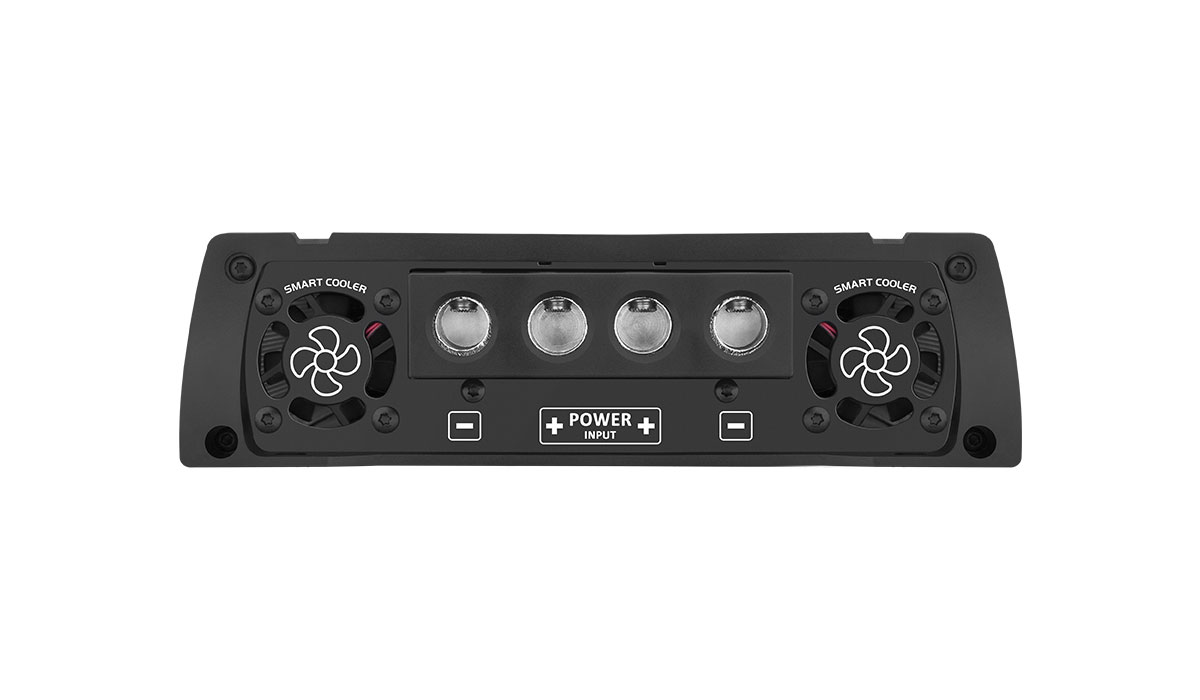

Power Terminals	Dual 2/0 AWG (70 mm²) Power & Ground Inputs
Protection System	Output Short-Circuit, Ground Short, Low Impedance, Voltage & Thermal Protection
Cooling System	Automatic Smart Cooler System
Dimensions (W x H x D)	228 mm x 64 mm x 458 mm (8.98″ x 2.52″ x 18.03″)
Net Weight	6.50 kg (~14.33 lbs)

SKU: 12000 Category: Amplifiers

Description
Reviews (0)

Rule the Streets with the Taramps T 12.000 CHIPEO 0.5 Ohm Monoblock Amplifier

Experience raw, unfiltered sound pressure with the Taramps T 12.000 CHIPEO 0.5 Ohm, a high-performance 1-channel Class D amplifier engineered to push out a massive 12,000 Watts RMS. Specially built with Taramps’ specialized CHIPEO architecture, this amplifier is designed specifically for extreme car audio builds, high-power speaker arrays, and SPL competition systems that demand ultra-low impedance operation and massive current handling.

Ultra-Low Impedance Power with Superior Thermal Stability Engineered to operate stably down to 0.5 Ohm, the T 12.000 CHIPEO ensures maximum power transfer from your electrical setup to your speakers. Its wide frequency response cleanly covers deep sub-bass and punchy mid-bass frequencies, while heavy-duty power terminals and an automated Smart Cooler system keep internal circuits operating safely during long, high-volume sessions.

Key Features:

12,000 Watts RMS Output: Maximum current delivery engineered for extreme SPL builds and heavy audio walls.
0.5-Ohm Stable Design: Designed to handle ultra-low impedance loads without overheating or clipping.
