NAKAMICHI NSW-P1209D4

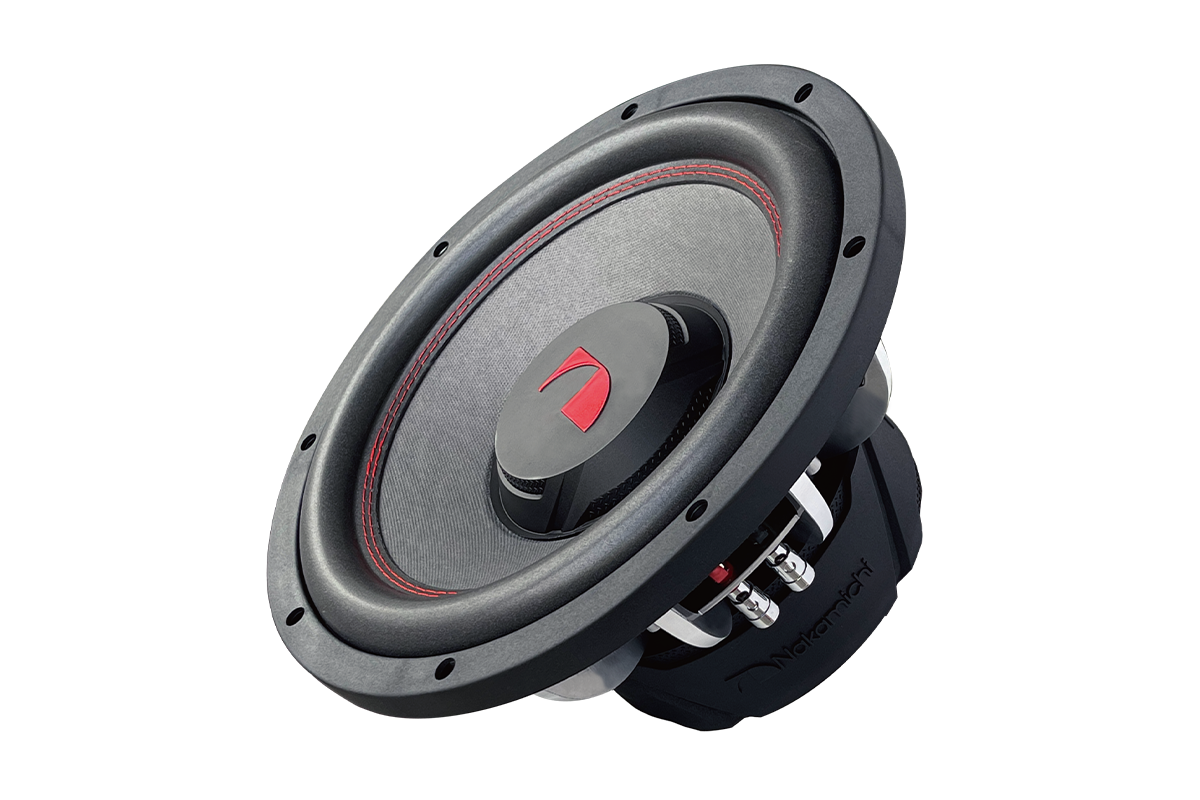

Nakamichi NSW-P1209D4 12-inch DVC Subwoofer. Built for audiophiles who demand extreme output without sacrificing sound clarity, this subwoofer is engineered with heavy-duty internal components to handle intense power loads while minimizing acoustic distortion.

Whether you’re building a competitive Sound Pressure Level (SPL) system or upgrading your daily driver with ultra-deep bass, the NSW-P1209D4 delivers room-shaking energy and clean precision.

Key Features & Highlights

• Exceptional Power Handling: Delivers a continuous 900 Watts RMS (N-Power) and up to 6300 Watts Peak Power for incredible low-end response.

• Large 75.5mm ASV Voice Coil: High-temperature $75.5\text{ mm}$ voice coil allows for maximum heat dissipation, ensuring long play times at high volume levels without thermal stress.

• Massive Motor Structure: Built with an impressive 112.86 oz (3.2kg) heavy-density magnet that provides precise cone control and high excursion capability.

• Dual Voice Coil ($4\Omega + 4\Omega$ DVC): Enables flexible system wiring—wire the dual $4\Omega$ voice coils in parallel to present a $2\Omega$ load to your monoblock amplifier for maximum output, or in series for an $8\Omega$ load.

• Versatile Enclosure Performance: Excels in custom sealed boxes for tight, articulate bass or vented/ported enclosures for maximum output in hip-hop, electronic, and bass-heavy tracks.

• Package Contents

  • 1x Nakamichi NSW-P1209D4 12″ DVC Subwoofer

  • 1x Cutout / Mounting Template

  • 1x User Manual
