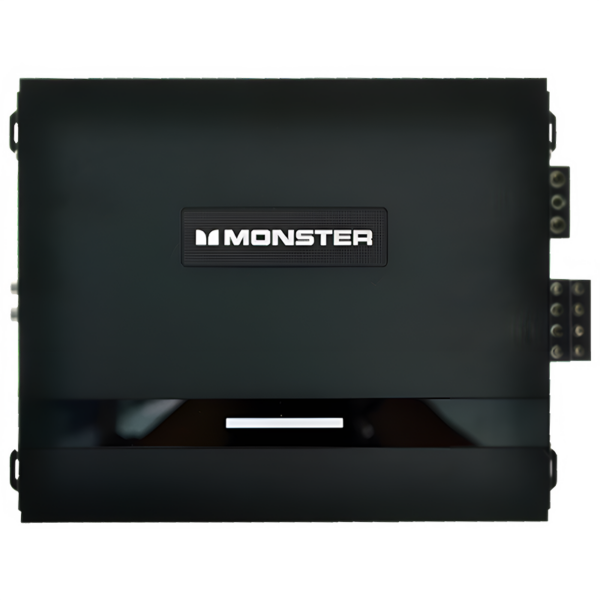

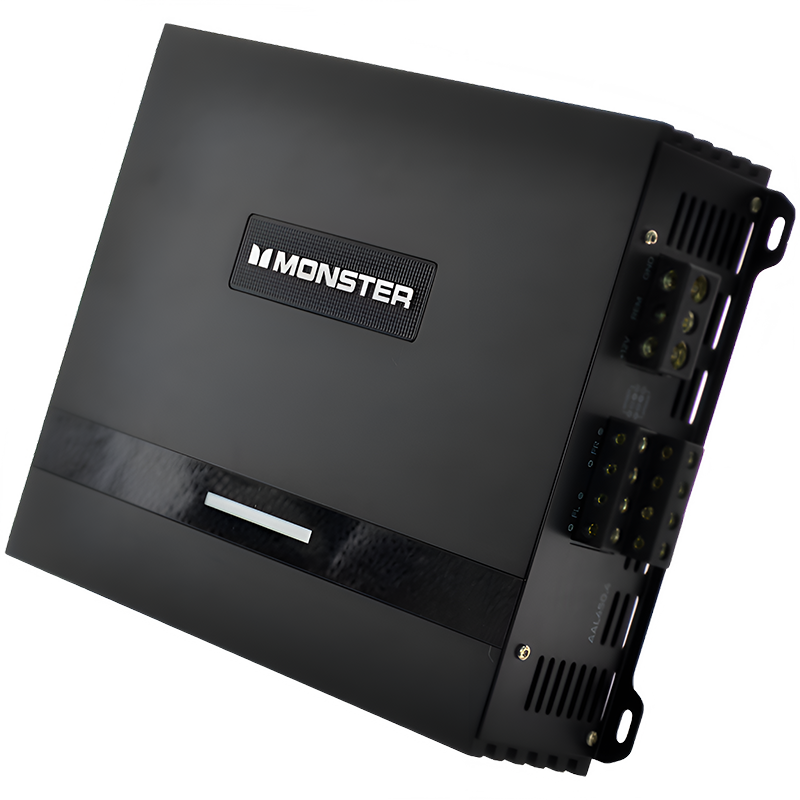

Full Range Amplifier 4x800W RMS @1 Ohm – AAL800.4

Technical Specifications

RMS Power Output: $4 \times 800\text{W}$ @ 1 Ohm / $4 \times 400\text{W}$ @ 2 Ohms / $2 \times 1600\text{W}$ @ 2 Ohms (Bridged)
Max/Peak Power: 6400W
Signal Input: 8V RCA Input Range
Frequency Response: Full Range ( $10\text{ Hz} - 20\text{ kHz}$ )
Dimensions ( $L \times W \times H$ ): $270\text{ mm} \times 230\text{ mm} \times 76.2\text{ mm}$
Net Weight: 3.56 kg

SKU: SKU: AAL800.4 Category: Amplifiers

Description
Reviews (0)

Product Overview

The Monster AAL800.4 is a high-power Class D 4-channel full-range amplifier designed for extreme audio installations, competition setups, and open-show (Pro Audio) environments. Capable of delivering a massive 800W RMS per channel at a 1 Ohm load, this amplifier provides high power density to drive multiple midranges, tweeters, or high-output speaker arrays per channel with low signal distortion and low thermal dissipation.

Key Features & Highlights

1 Ohm Stable Per Channel: Engineered for extreme multi-speaker wiring setups, allowing up to 800W RMS delivery per channel at a low 1 Ohm impedance.
Full-Range Class D Efficiency: High-speed digital circuitry ensures full-spectrum frequency reproduction ( $10\text{ Hz} - 20\text{ kHz}$ ) with minimal power draw and thermal dissipation.

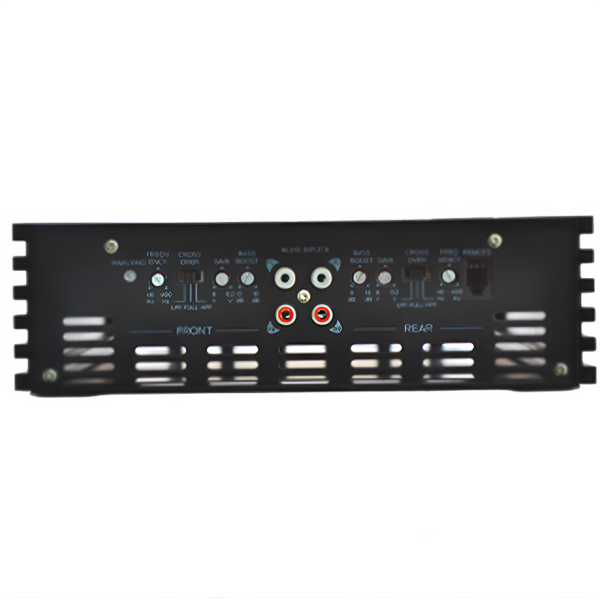

Selectable Crossover Network: Built-in LP / HP / Full crossover switches allow precise frequency tailoring for full-range speakers, midrange arrays, or bridged subwoofers.
Bridged High-Power Mode: Bridgeable into 2 channels to deliver high power output into 2 Ohm bridged loads.
