Apocalypse AAB-1200.2D
Apocalypse AAB-1200.2D - Image 2
Apocalypse AAB-1200.2D - Image 3
Apocalypse AAB-1200.2D - Image 4

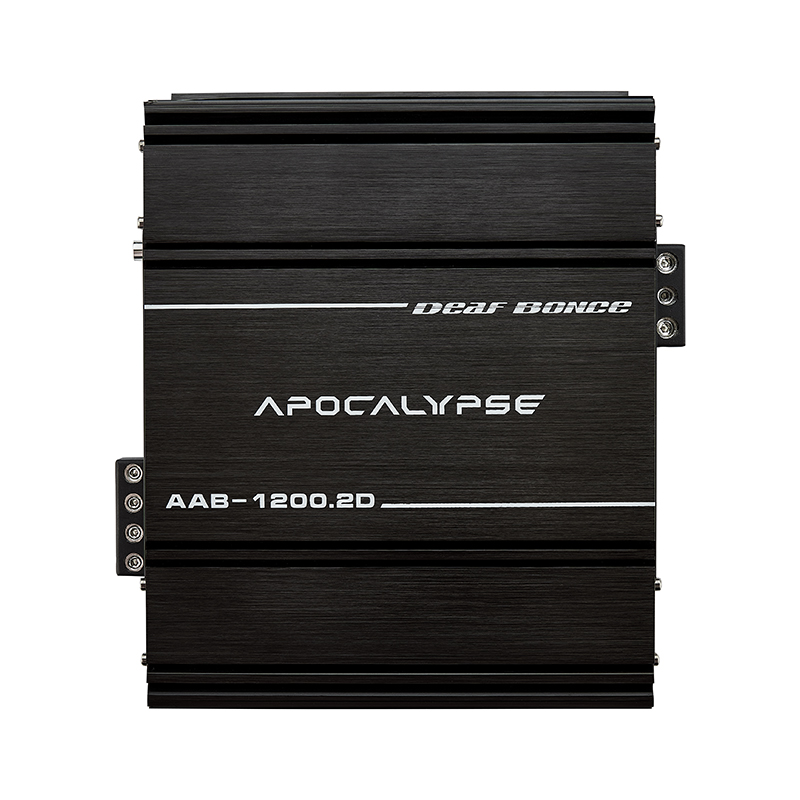

Apocalypse AAB-1200.2D

  • 1200W RMS Output: $2\times1200\text{W}$ @ 1 Ohm ($2\times700\text{W}$ @ 2 Ohm, $2\times400\text{W}$ @ 4 Ohm).

  • Bridgeable Monoblock Mode: Bridges to $1\times2400\text{W}$ RMS @ 2 Ohms for massive single-channel output.

  • Full-Range Crossovers: Wide LPF/HPF adjustment (15 Hz – 10,000 Hz) for subwoofers, midranges, or tweeters.

  • Compact Class D Design: High efficiency with low thermal build-up in a compact chassis.

  • High Sound Clarity: Damping factor \ge 210$ and SNR \ge 100\text{ dB} for precise, distortion-free response.

  • Heavy-Duty Terminals: 4 AWG power inputs and 8 AWG speaker outputs.

SKU: AAB1200.2D Category:

Deaf Bonce Apocalypse AAB-1200.2D Atom Plus 2-Channel Amplifier

Unleash exceptional power and sound clarity in your car audio system with the Deaf Bonce Apocalypse AAB-1200.2D Atom Plus. Engineered with high-efficiency Class D technology, this powerful 2-channel amplifier delivers up to 1200 Watts RMS, making it an ideal choice for driving high-power mid-bass speakers, pro audio setups, or bridged subwoofer systems in compact spaces.

Key Features & Highlights

  • High-Power Class D Output: Delivers clean, efficient power with minimal heat generation and reduced electrical draw on your vehicle’s battery.

  • Flexible 2-Channel Configuration: Run two powerful channels at 1 Ohm or bridge them into a single 2-Ohm channel for massive subwoofer or speaker output.

  • Full-Range Precision Crossovers: Features adjustable High Pass Filters (HPF) and Low Pass Filters (LPF) ranging from 15 Hz to 10 kHz, allowing precise tuning for midranges, tweeters, or subwoofers.

  • Ultra-Compact Atom Series Design: Heavy-duty performance packaged in an extremely compact heat sink for easy installation under seats or in tight trunk compartments.

  • Heavy-Duty Terminal Connections: Built with robust 4 AWG power inputs and 8 AWG speaker outputs for optimal current flow and safety.

Technical Specifications

Specification Value
Model Apocalypse AAB-1200.2D Atom Plus
Amplifier Class Class D
Channels 2
RMS Power @ 1 Ohm (14.4V)
RMS Power @ 2 Ohm (14.4V)
RMS Power @ 4 Ohm (14.4V)
RMS Power Bridged @ 2 Ohm (14.4V)
Frequency Response 15 Hz – 20,000 Hz
High Pass Filter (HPF) 15 Hz – 10,000 Hz
Low Pass Filter (LPF) 50 Hz – 10,000 Hz
Crossover Slope 12 dB/Oct
Signal-to-Noise Ratio (SNR)
Damping Factor
Operating Voltage 9V – 15V DC
Power Input Terminals 4 Gauge
Speaker Output Terminals 8 Gauge

Package Includes

  • 1 × Deaf Bonce Apocalypse AAB-1200.2D Amplifier

  • 1 × Mounting Hardware Kit

  • 1 × Owner’s Manual & Warranty Card
