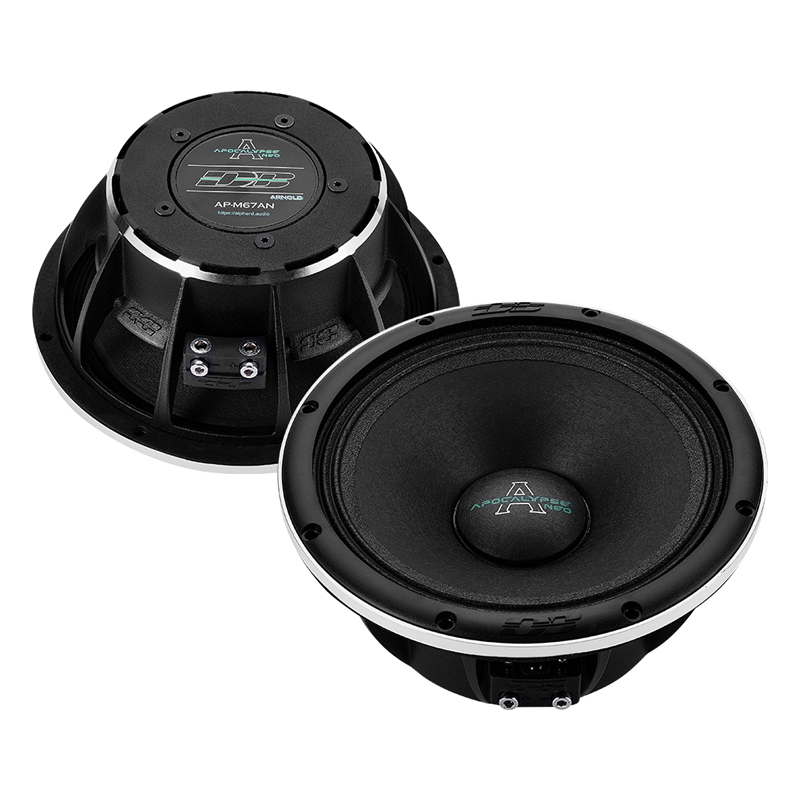

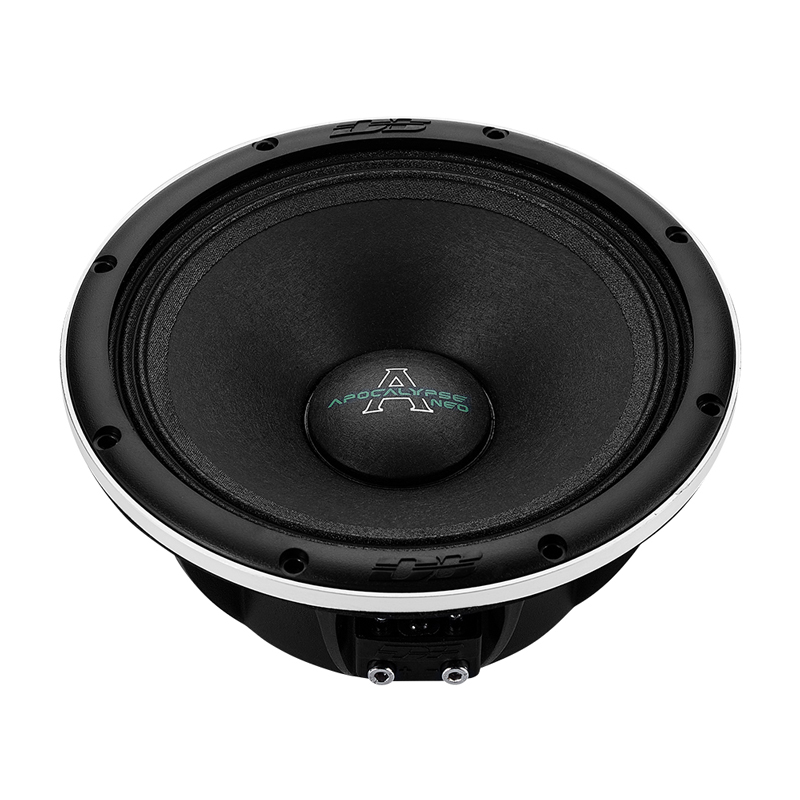

Deaf Bonce Apocalypse AP-M67AN 6.5″ Midrange Speakers (4 Ohm, Pair)

Product Overview

Elevate your car audio system with the Deaf Bonce Apocalypse AP-M67AN 6.5-inch midrange speakers. Designed for extreme loudness and high-efficiency Sound Pressure Level (SPL) setups, the AP-M67AN series delivers crystal-clear vocals and incredible midrange punch even at maximum volume levels. Featuring a powerful neodymium magnet structure and lightweight cone design, these speakers are engineered for audiophiles and car audio competitors who refuse to compromise on sound quality or power output.

Sold as a complete pair, these 4 Ohm midrange drivers are the ultimate upgrade for custom door panels, A-pillars, or high-output pro-audio system builds.

---

Key Features & Highlights

• Ultra-Efficient Neodymium Magnet: Compact yet exceptionally powerful neodymium motor assembly ensures maximum sensitivity, allowing the speakers to produce massive sound levels with high power handling.

• Optimized Frequency Response: Specifically tuned to deliver clear, accurate, and powerful vocal reproduction without harsh distortion at high volume.

• Durable Pressed Paper Cone: Lightweight pressed paper cone coupled with a durable cloth surround provides fast transient response and long-lasting performance.

• Heavy-Duty Aluminum Basket: Rugged cast aluminum frame offers superior structural rigidity while efficiently dissipating heat during extended playback sessions.

• Standard 4 Ohm Impedance: Fits seamlessly into standard multi-channel amplifier setups and allows for flexible wiring configurations across custom installs.

Technical Specifications

General Specifications

Feature	Specification
Model	AP-M67AN
Type	Midrange Loudspeaker
Speaker Size	6.5″ (165 mm)
Package Quantity	Pair (2 Speakers)
Sensitivity (SPL)	102.00 dB
Frequency Response	200 Hz – 14,000 Hz

Power Handling

Parameter	Rating
RMS Power	300 Watts
MAX Power	600 Watts
Impedance	4 Ohms

Build & Materials

Component	Material / Spec
Magnet Type	High-Grade Neodymium
Basket / Frame	Cast Aluminum
Cone Material	Pressed Paper
Surround Material	Durable Cloth
Voice Coil Diameter	1.75″
Voice Coil Wire	Copper-Clad Aluminum (CCAW)

Thiele-Small (T/S) Parameters

Parameter	Value
Resonant Frequency (Fs)	125.00 Hz
Total Q (Qts)	0.31
Force Factor (BL)	9.30
Equivalent Volume (Vas)	5.72 L

Dimensions & Weight

Dimension	Measurement
Mounting Depth	2.66″ (67.5 mm)
Cut-out Diameter	5.98″ (152.0 mm)
Gross Weight (Pair)	8.99 lbs (4.08 kg)
