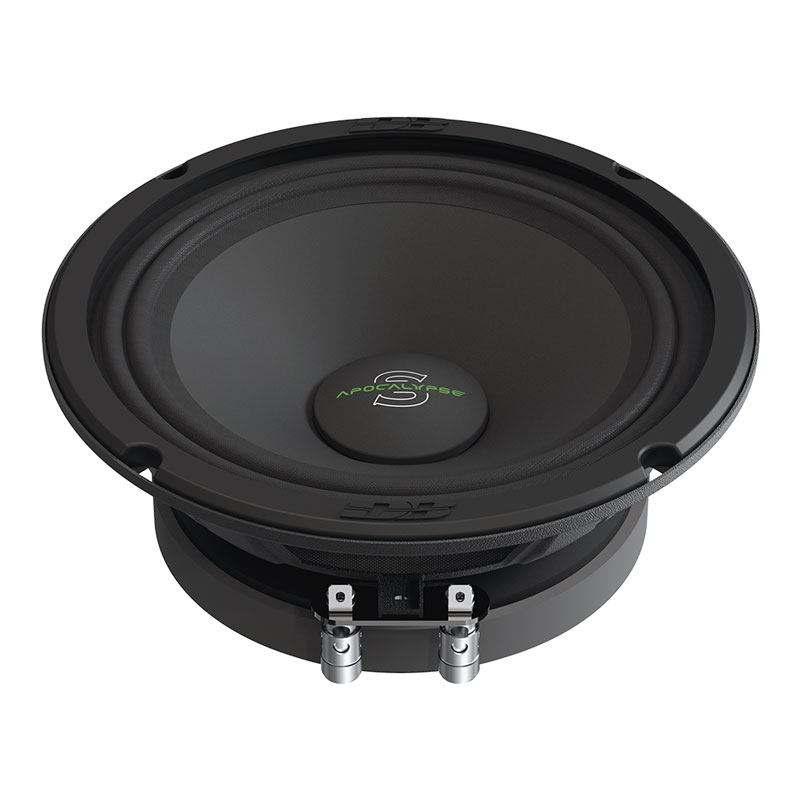

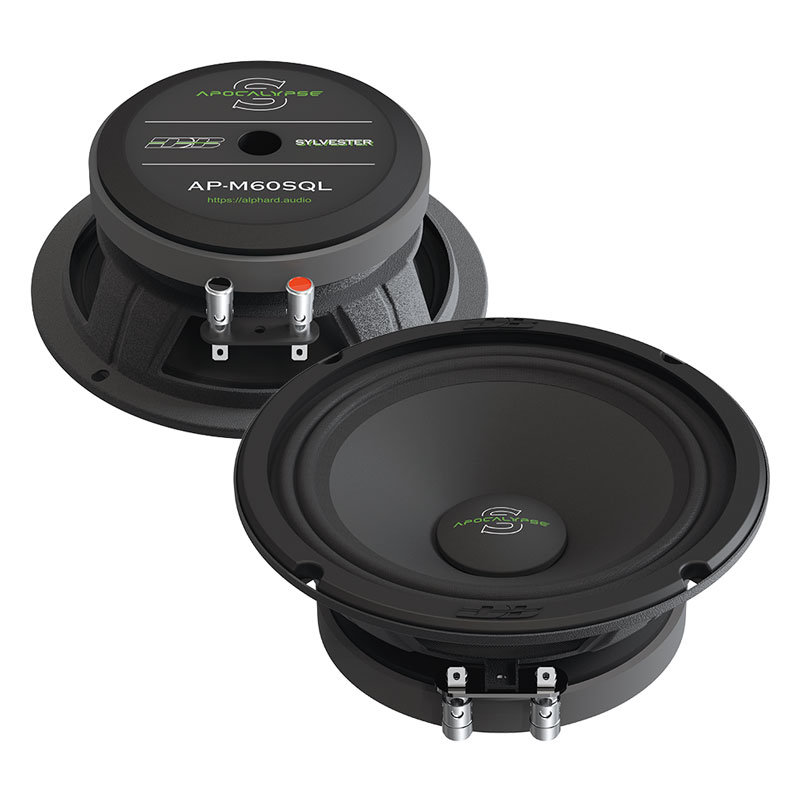

Apocalypse AP-M60SQL

Overview

The Deaf Bonce Apocalypse AP-M60SQL is a high-output 6.5-inch midrange speaker pair built for extreme Sound Quality and Loudness (SQL) setups. Designed to elevate your vehicle’s sound system into a mobile concert hall, these drivers combine immense power handling with high efficiency and a balanced, crisp sound profile across vocal and instrumental frequencies.

Key Features & Highlights

• Hybrid Magnet System: Integrates a powerful hybrid magnet structure (Ferrite + Neodymium) to deliver maximum force factor ($BL = 7.70$) in a lightweight and relatively compact frame.

• High Efficiency & Output: Features an impressive 97.50 dB sensitivity (SPL) rating, allowing these speakers to reach extreme volumes effortlessly while maintaining clarity without distortion.

• Pro-Grade Voice Coil: Equipped with a 1.50″ aluminum voice coil designed to handle continuous high-power demands and manage thermal heat dissipation efficiently.

• Durable Construction: Constructed with a reinforced pressed paper cone, a high-durability cloth surround, and a rugged stamped steel frame built to withstand high-excursion demands.

• Easy Fitment: Features a shallow 2.37″ (60.2 mm) mounting depth, making it significantly easier to install into standard door panels or custom pods without extensive modifications.

• Technical Specifications

  Audio & Power Performance

  • Type: Midrange Speaker

  • Size: 6.5″

  • RMS Power: 150 W

  • MAX Power: 300 W

  • Impedance: 4 Ohm

  • Sensitivity (SPL): 97.50 dB

  • Frequency Response: 100 – 13,000 Hz

  • Package Quantity: Pair

  ---

  Build & Materials

  • Cone Material: Paper

  • Surround Material: Cloth

  • Frame: Steel

  • Magnet Type: Hybrid

  • Voice Coil Size: 1.50″

  • Voice Coil Wire: Aluminum

  ---

  Thiele-Small (T/S) Parameters

  • Resonance Frequency (F_s): 110.00 Hz

  • Total Q (Q_{ts}): 0.45

  • Force Factor (BL): 7.70

  • Equivalent Air Volume (V_{as}): 5.20 L

  ---

  Dimensions & Weight

  • Cut-out Dimension: 5.71″ (145.0 mm)

  • Mounting Depth: 2.37″ (60.2 mm)

  • Gross Weight: 8.62 lb (3.91 kg)
