HOME / AMPLIFIERS / SMART 5 – 1 ~ 2 OHMS MULTI-IMPEDANCE TARAMPS AMPLIFIER (1 CHANNEL OF 5000 WATTS RMS)

BESTSELLER

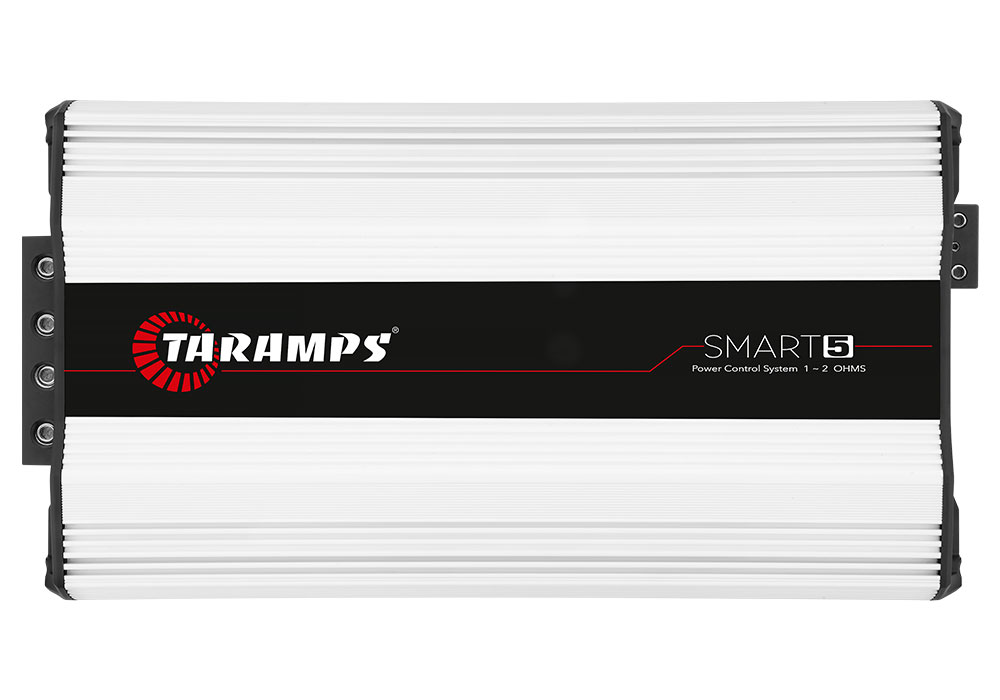

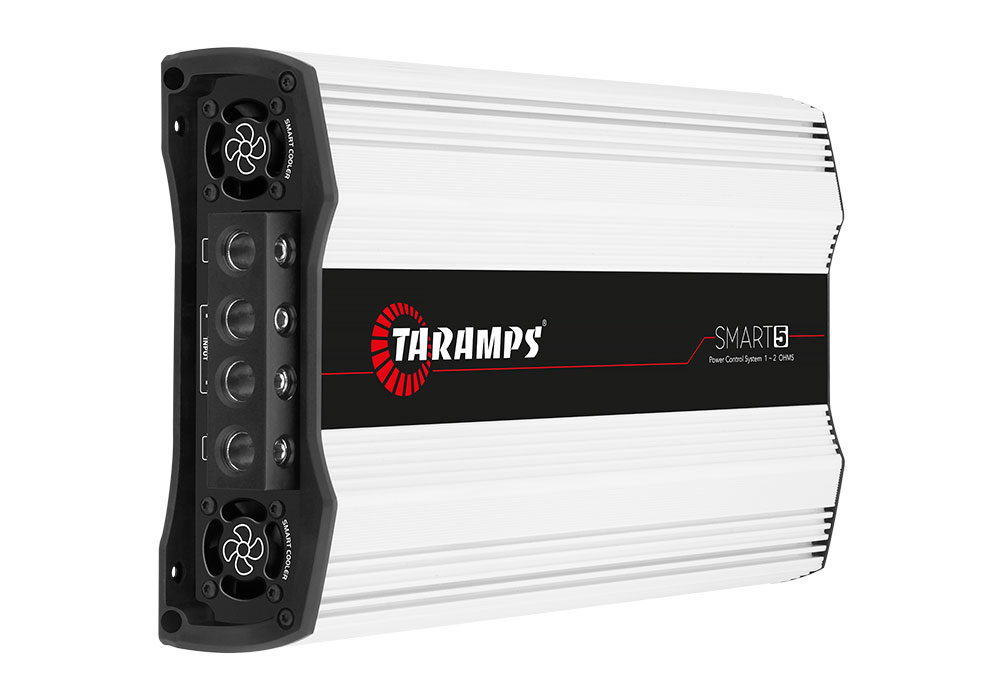

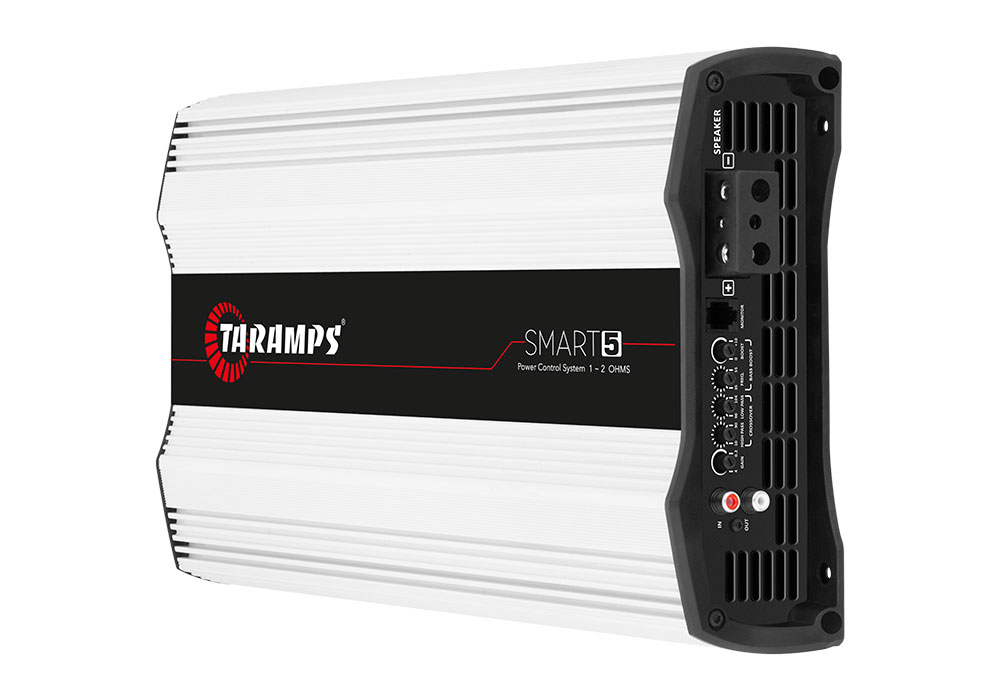

SMART 5 – 1 ~ 2 OHMS Multi-impedance Taramps Amplifier (1 Channel of 5000 Watts RMS)

Taramps SMART 5 (1~2 Ohms) Technical Specifications

Specification	Details
Operation Class	Class D
Number of Channels	01 Channel (Monoblock)
Maximum Power Output	5000 Watts RMS @ 1 Ohm or 2 Ohms (12.6VDC) 3200 Watts RMS @ 4 Ohms (12.6VDC)
Output Impedance Range	Multi-Impedance 1 to 2 Ohms
Frequency Response	10 Hz – 10 kHz (-3dB)
High Pass Filter (HPF)	10 Hz – 90 Hz (-12dB/8ª) Variable
Low Pass Filter (LPF)	90 Hz – 10 kHz (-12dB/8ª) Variable
Bass Boost	Frequency: 35 Hz – 55 Hz \| Boost: 0 to +10 dB
Input Sensitivity	0.22V – 4.0V
Signal-to-Noise Ratio	> 90 dB
Efficiency	84%
Supply Voltage Range	9 VDC – 16 VDC
Current Consumption	Rest: 2.80A \| Musical: 230A \| Rated (Sinusoidal): 460A
Protection System	Short-Circuit Output, High/Low Voltage, & Thermal Protection
Dimensions (W x H x D)	228 mm x 70 mm x 328 mm (8.98″ x 2.76″ x 12.91″)
Net Weight	4.20 kg (~9.24 lbs)

SKU: SMART5 Category: Amplifiers

Description
Reviews (0)

Dominate Your Sound System with the Taramps SMART 5 Multi-Impedance Amplifier

Push your car audio build to extreme levels with the Taramps SMART 5, a high-power monoblock amplifier engineered to deliver a massive 5000 Watts RMS. Powered by Taramps’ proprietary Multi-Impedance Technology, this intelligent Class D amplifier delivers maximum power across both 1-Ohm and 2-Ohm impedance loads automatically, eliminating the need to match fixed-impedance gear.

Extreme Power with Intelligent Signal Control Designed for high-SPL builds and audiophile-grade bass setups, the SMART 5 ensures continuous, high-efficiency output while protecting your system. Advanced internal circuitry adjusts power delivery to prevent dynamic signal loss, while integrated smart fans and a heavy-duty thermal heatsink maintain cool operation even under heavy, continuous operation.

Key Features:

Multi-Impedance Flexibility: Delivers a full 5000W RMS dynamically between 1 and 2 Ohms.
Full-Spectrum Frequency Output: Handles rich sub-bass to crisp mid-range signals with a 10Hz to 10kHz response.
