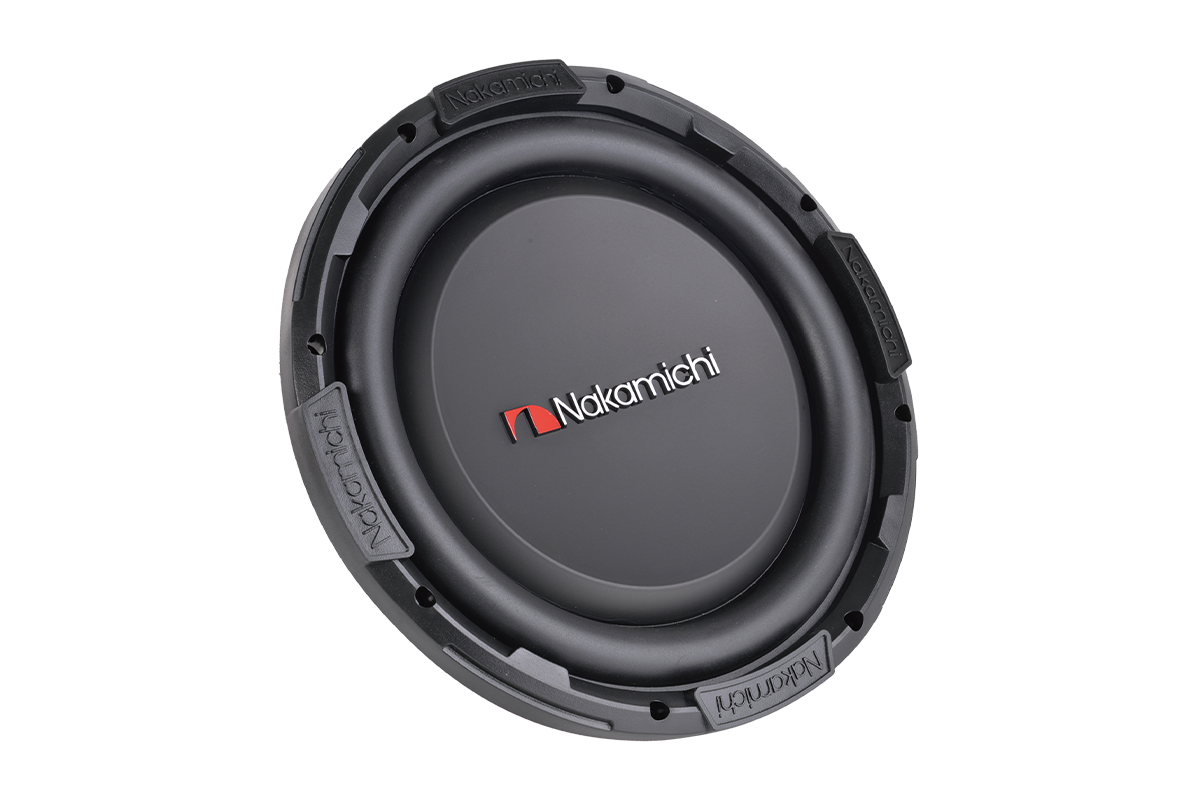

the Nakamichi NSW-X1204D4 12-inch Dual Voice Coil Subwoofer. Specifically engineered for space-constrained installations, this shallow-mount subwoofer combines Nakamichi’s high-fidelity acoustic performance with an ultra-compact chassis design.
Whether installed in shallow custom enclosures, under seats, or tight boot setups, the NSW-X1204D4 delivers impactful low-frequency punch and low-distortion power.
Key Features & Highlights
-
Ultra-Slim Mounting Profile: Designed with an exceptional 3.82-inch (97 mm) mounting depth, making it ideal for tight custom enclosures, trucks, and space-limited vehicle setups.
-
High-Output Power Handling: Handles continuous 400 Watts RMS (N-Power) with up to 4000 Watts Peak Power for clear, dynamic bass response at any volume level.
-
Dual Voice Coil ($4\Omega + 4\Omega$ DVC): Offers flexible system wiring—wire parallel down to $2\Omega$ to extract maximum output from your monoblock amplifier, or series to $8\Omega$.
-
Robust Motor Structure: Equipped with a 52 oz (1474g) magnet and a high-temperature $\Phi 50.5\text{ mm}$ voice coil to ensure long-term thermal management and linear cone excursion.
-
Focused Low-Frequency Range: Optimized for frequency response from 31Hz to 550Hz, delivering tight, clean sub-bass where standard full-range speakers fall short.
-
Package Contents
-
1x Nakamichi NSW-X1204D4 12″ Shallow DVC Subwoofer Driver
-
1x Mounting / Cutout Template
-
1x User Manual
-
