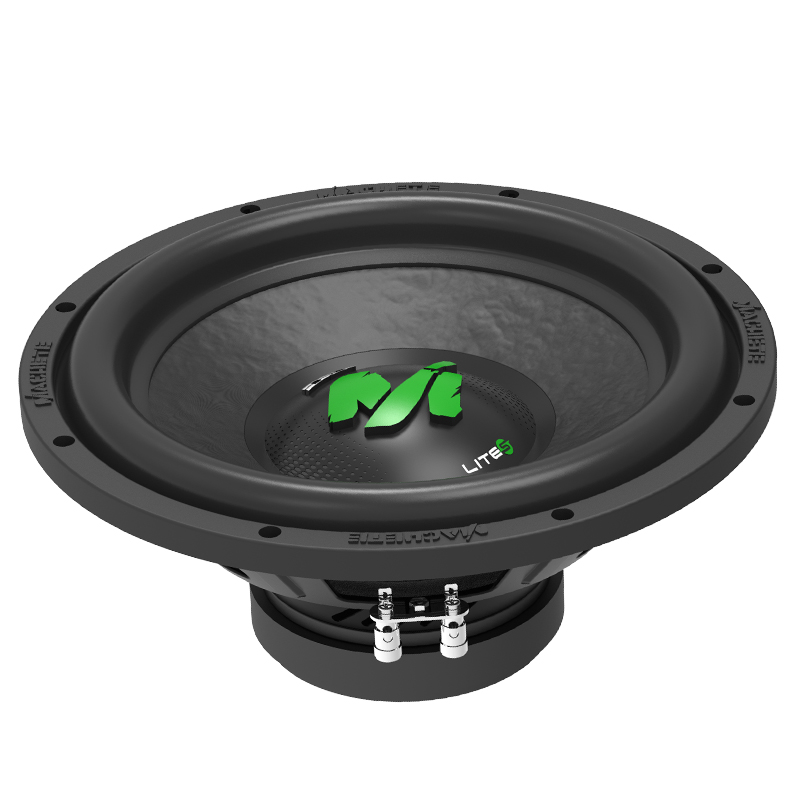

”Machete ML-12S D2”

The Machete ML-12S D2 by Deaf Bonce is a high-performance 12-inch car audio subwoofer designed to deliver rich, deep, and authoritative low-frequency response without overwhelming your vehicle’s electrical system or taking up excessive trunk space. Engineered for both audio enthusiasts and everyday listeners seeking an impactful bass upgrade, this dual voice coil subwoofer balances power handling, efficiency, and structural durability.

Key Performance Features & Technical Specifications

• Optimized Power Handling: Rated at 300 W RMS with a maximum power handling of 600 W MAX, making it ideal for pairing with a wide variety of monoblock and multi-channel amplifiers.

• Dual 2-Ohm Impedance ($2+2\Omega$): Features dual voice coils configured for maximum system flexibility, allowing you to wire the subwoofer down to a $1\Omega$ nominal load to extract maximum power from mono amplifiers, or series-wire to a $4\Omega$ load.

• Precision Voice Coil Design: Equipped with a 1.75-inch copper voice coil wire designed to efficiently dissipate heat during extended playing sessions at high volume levels.

• High-Excursion & Linear Cone Motion: Combines a light yet rigid pressed paper cone with a flexible foam surround, offering high sensitivity (88.90 dB SPL) and clean cone travel with an Xmax​ of $10.00\text{ mm}$ (and maximum mechanical excursion Xmeh​ of $20.00\text{ mm}$).

• Robust Motor & Frame Construction: Powered by a sturdy ferrite magnet motor structure and supported by a durable stamped steel frame to minimize resonance and structural distortion under heavy excursion.

• Acoustic Parameters:

  • Resonance Frequency (Fs​): $35.70\text{ Hz}$ for punchy, dynamic sub-bass response.

  • Total Q (Qts​): $0.46$, providing great versatility across sealed and vented enclosure designs.

  • Equivalent Air Volume (Vas​): $41.60\text{ L}$.

  • Force Factor ($BL$): $15.80$.

Installation & Physical Dimensions

Designed with a shallow mounting footprint for easier integration into standard custom-built sub boxes or prefabricated enclosures:

• Mounting Depth: $5.06\text{ inches}$ ($128.5\text{ mm}$)

• Cut-Out Diameter: $10.94\text{ inches}$ ($278.0\text{ mm}$)

• Gross Unit Weight: $10.14\text{ lbs}$ ($4.6$
