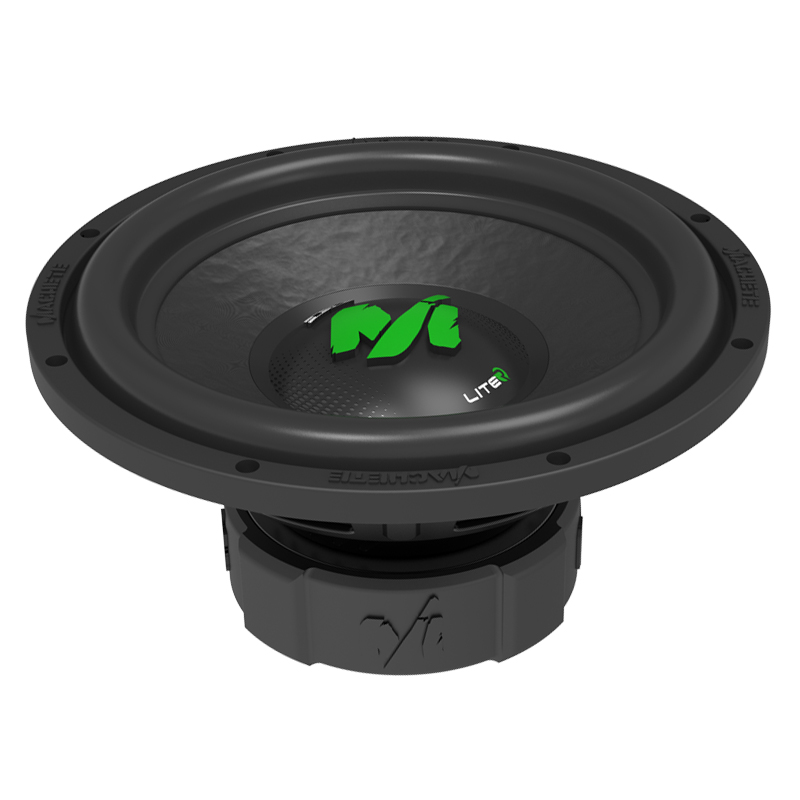

Deaf Bonce Machete ML-12R D2 12″ Subwoofer (500W RMS / 1000W MAX, Dual 2-Ohm)
Upgrade your car audio system with deep, hard-hitting bass with the Deaf Bonce Machete ML-12R D2 12-inch Subwoofer. Engineered by Alphard Group to deliver high-performance low-frequency response without compromising reliability, the Machete series offers an exceptional balance of power, efficiency, and durability for everyday audio enthusiasts and system builders alike.
Core Highlights & Features
-
500 Watts RMS / 1000 Watts MAX Power Handling: Engineered to sustain reliable daily performance while handling peak dynamic bursts with minimal distortion.
-
Dual 2-Ohm Voice Coil (DVC): Features high-temp copper voice coils on a 2.0-inch former, offering flexible wiring configurations for 1-Ohm (parallel) or 4-Ohm (series) amplifier loads.
-
Optimized Cone & Surround Assembly: Combines a pressed paper cone with a high-roll foam surround to deliver linear excursion ($X_{max}$ of 12.0 mm) and tight, musical bass transient response.
-
Durable Steel Frame & Ferrite Magnet: Built around a rugged steel basket and high-density ferrite magnet motor structure for structural rigidity and heat dissipation.
-
Versatile Enclosure Compatibility: Optimized Thiele-Small parameters (F_s 38.0 Hz, Q_{ts} 0.46, V_{as} 42.0 L) make it ideal for both sealed and ported (vented) custom enclosure designs.
Technical Specifications
| Parameter | Specification |
| Speaker Size | 12 Inch (300 mm) |
| Continuous Power (RMS) | 500 W |
| Peak Power (MAX) | 1000 W |
| Impedance | Dual 2 Ohm (2+2\ \Omega) |
| Voice Coil Diameter | 2.00 Inches |
| Voice Coil Wire Material | Copper |
| Cone Material | Pressed Paper |
| Surround Material | Foam |
| Magnet Type | Ferrite |
| Basket/Frame | Steel |
| Sensitivity (SPL) | 88.0 dB |
| Resonant Frequency (F_s) | 38.0 Hz |
| Total Q (Q_{ts) | 0.46 |
| Equivalent Air Volume (V_{as}) | 42.0 L |
| Force Factor (BL) | 16.6 |
| One-Way Excursion (X_{max}) | 12.0 mm |
| Mechanical Excursion (X_{meh}) | 24.0 mm |
| Mounting Depth | 5.38 in (136.6 mm) |
| Cut-out Diameter | 10.94 in (278.0 mm) |
| Gross Weight | 15.65 lb (7.10 kg) |
