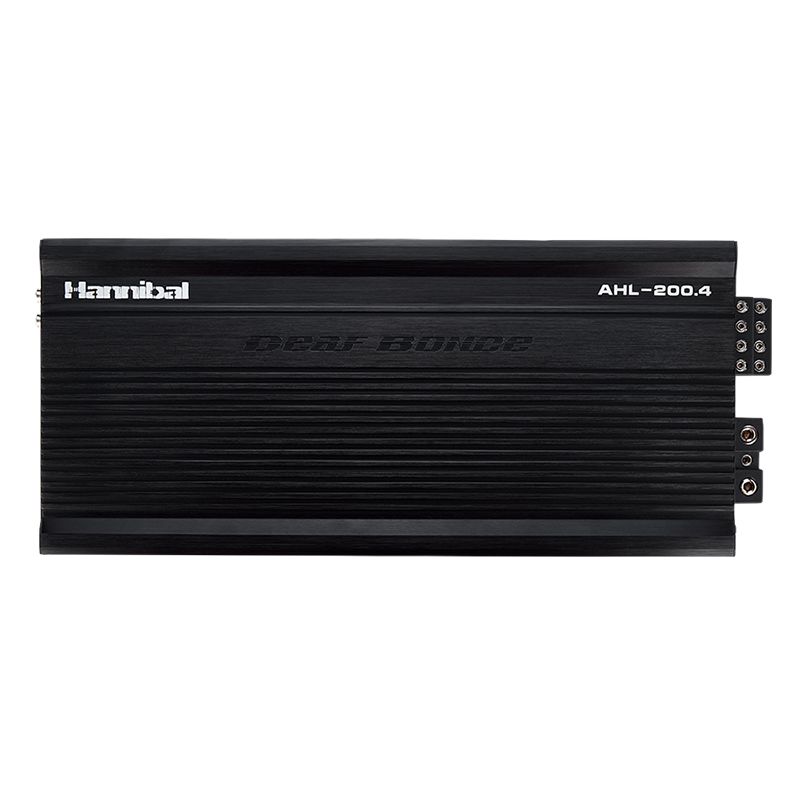

Deaf Bonce Hannibal AHL-200.4 4-Channel Amplifier
Power up your entire car audio system with the Deaf Bonce Hannibal AHL-200.4, a high-performance 4-channel Class D power amplifier built for outstanding clarity, high power output, and thermal reliability. Belonging to Deaf Bonce’s widely acclaimed Hannibal series, this versatile amplifier delivers up to 200 Watts RMS per channel at 2 Ohms (or 400 Watts RMS bridged at 4 Ohms), making it the perfect solution for driving loud midrange speakers, tweeters, or a combination of speakers and subwoofers.
Key Features & Highlights
-
High RMS Power Output: Generates $4 \times 200\text{ Watts}$ RMS at 2 Ohms, $4 \times 110\text{ Watts}$ RMS at 4 Ohms, or bridges into $2 \times 400\text{ Watts}$ RMS at 4 Ohms to handle heavy acoustic setups.
-
Efficient Class D Topology: Converts power with maximum efficiency, keeping heat generation low and reducing stress on your vehicle’s electrical system and alternator.
-
Versatile Wide-Range Crossovers: Built-in High Pass Filter (10 Hz – 12,000 Hz) and Low Pass Filter (10 Hz – 12,000 Hz) offer complete frequency control for tuning tweeters, midranges, or mid-bass drivers.
-
High Damping & Distortion-Free Clarity: High damping factor ($\ge 150$) and Signal-to-Noise Ratio ($\ge 95\text{ dB}$) keep sound clean, crisp, and articulate at extreme volume levels.
-
Compact Heatsink Chassis: Durable, compact heatsink design ensures continuous thermal dissipation while allowing straightforward installation in tight vehicle spaces.
Technical Specifications
| Specification | Value |
| Model | Hannibal AHL-200.4 |
| Amplifier Class | Class D |
| Channels | 4 |
| RMS Power @ 2 Ohm (14.4V) | $4 \times 200\text{ Watts}$ |
| RMS Power @ 4 Ohm (14.4V) | $4 \times 110\text{ Watts}$ |
| RMS Power Bridged @ 4 Ohm (14.4V) | $2 \times 400\text{ Watts}$ |
| Frequency Response | 10 Hz – 20,000 Hz |
| High Pass Filter (HPF) | 10 Hz – 12,000 Hz |
| Low Pass Filter (LPF) | 10 Hz – 12,000 Hz |
| Crossover Slope | 12 dB/Oct |
| Signal-to-Noise Ratio (SNR) | $\ge 95\text{ dB}$ |
| Damping Factor | $\ge 150$ |
| Operating Voltage | 9V – 15V DC |

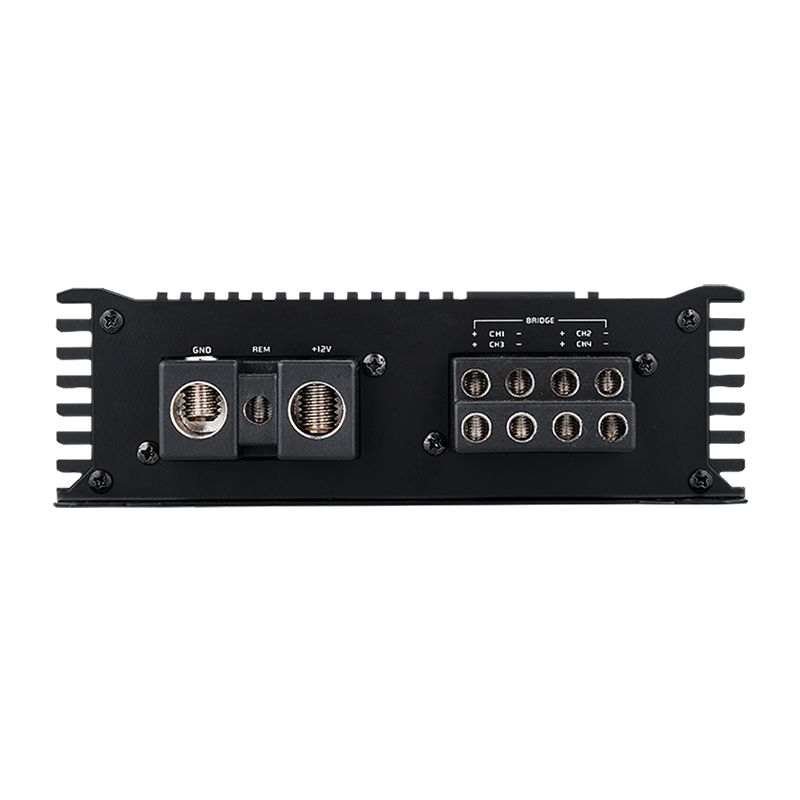

| Power Input Terminals | 4 Gauge |
| Speaker Output Terminals | 8 Gauge |
| Dimensions (W × L × H) | 9.05″ × 6.89″ × 2.16″ (230 × 175 × 55 mm) |
Package Includes
-
1 × Deaf Bonce Hannibal AHL-200.4 4-Channel Amplifier
-
1 × Mounting Hardware Kit
-
1 × User Manual & Warranty Card
