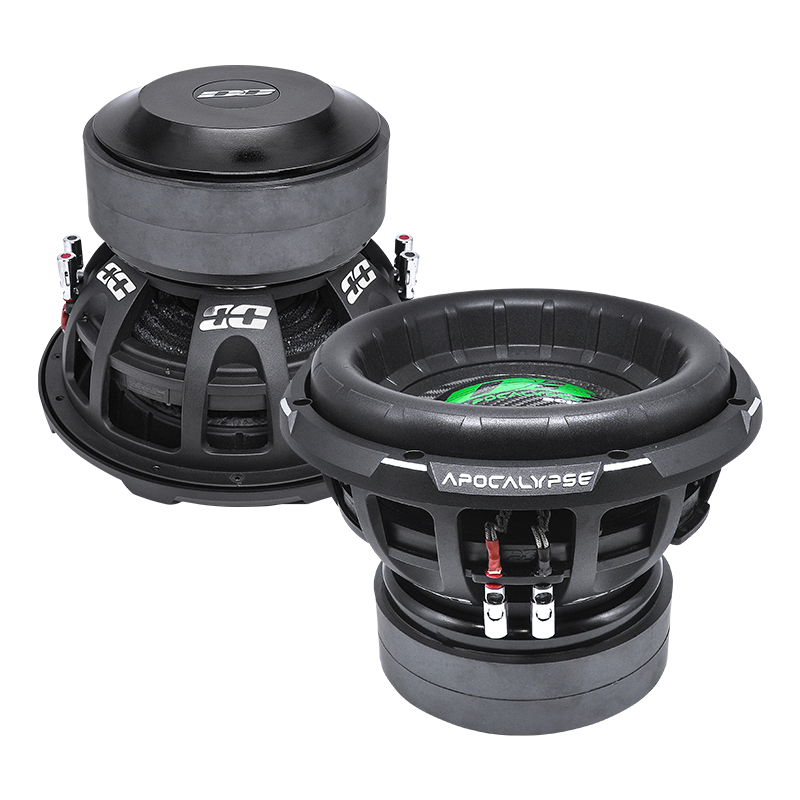

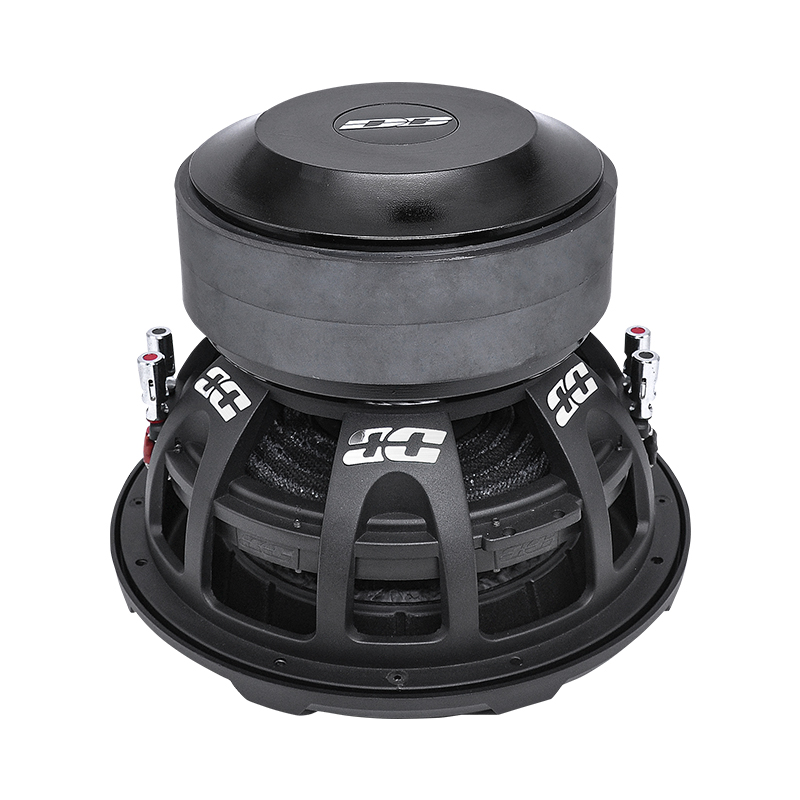

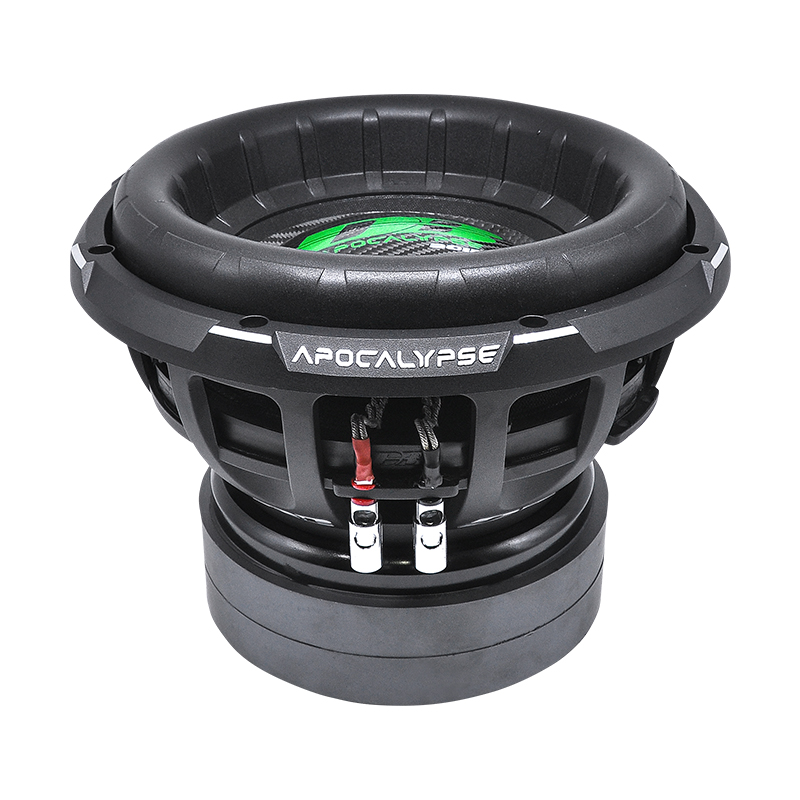

Deaf Bonce Apocalypse DB-3012R D1/D2 – 12″ 2800W RMS Competition Car Audio Subwoofer
Engineered for extreme SPL performance and high-power daily builds, the Deaf Bonce Apocalypse DB-3012R D1/D2 is a championship-tier 12-inch competition subwoofer designed to dominate. Built on Deaf Bonce’s world-record-setting DB-R platform, this 12-inch driver pushes low frequencies with incredible force, relentless thermal handling, and minimal distortion.
Available in either Dual 1-Ohm (D1) or Dual 2-Ohm (D2) voice coil configurations, the DB-3012R offers maximum wiring flexibility for mono-block amplifiers.
Key Features & Product Highlights
-
Extreme Power Capacity: Delivers 2800W RMS continuous power and up to 5600W MAX power, engineered to handle intense output without thermal stress.
-
Competition-Grade Voice Coil: Features a massive 3.00-inch high-temperature voice coil built to dissipate heat efficiently under heavy long-term loads.
-
Massive High-Flux Motor Structure: Powered by an oversized ferrite magnet system paired with a heavy-duty cast aluminum frame to prevent basket deflection and structural vibration.
-
Deep Linear Excursion: Engineered with an impressive 19.00 mm and 38.00 mm , giving the cone massive travel capability for chest-pounding low notes.
-
Durable Reinforced Cone: Combines a rigid paper cone with a wide foam surround to maintain perfect control during maximum excursion.
Built for Maximum SPL Output & Longevity
1. World-Record Pedigree
The DB-R series was refined specifically for high-output daily listening systems and SPL competition lanes. It maintains continuous structural integrity even when pushed to peak acoustic limits.
2. Precise Low-End Performance
Featuring a low resonant frequency () of 33.80 Hz and a high motor force factor () of 26.00, the DB-3012R delivers punchy, articulate, and accurate sub-bass in ported or custom enclosures.
3. Flexible System Integration
Choose the D1 (1+1 ) model to wire down to a 0.5-Ohm or up to a 2-Ohm load, or choose the D2 (2+2 ) model to run at 1-Ohm or 4-Ohms to optimize your amplifier output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Apocalypse DB-3012R D1 / DB-3012R D2 |
| Subwoofer Size | 12 Inches (300 mm) |
| RMS Power | 2800 Watts |
| MAX Power | 5600 Watts |
| Impedance Options | Dual 1-Ohm (D1) / Dual 2-Ohm (D2) |
| Sensitivity (SPL) | 86.50 dB |
| Resonant Frequency () | 33.80 Hz |
| Voice Coil Diameter | 3.00 Inches |
| Cone Material | Pressed Paper |
| Surround Material | High-Excursion Foam |
| Basket Frame | Cast Aluminum |
| Magnet Type | Ferrite |
| Linear Excursion () | 19.00 mm |
| Max Mechanical Excursion () | 38.00 mm |
| Total Q Factor () | 0.43 |
| Force Factor () | 26.00 |
| Equivalent Air Volume () | 30.20 L |
| Mounting Depth | 8.82″ (224.0 mm) |
| Cut-out Dimension | 11.18″ (284.0 mm) |
| Total Unit Weight | 61.51 lbs (27.90 kg) |
