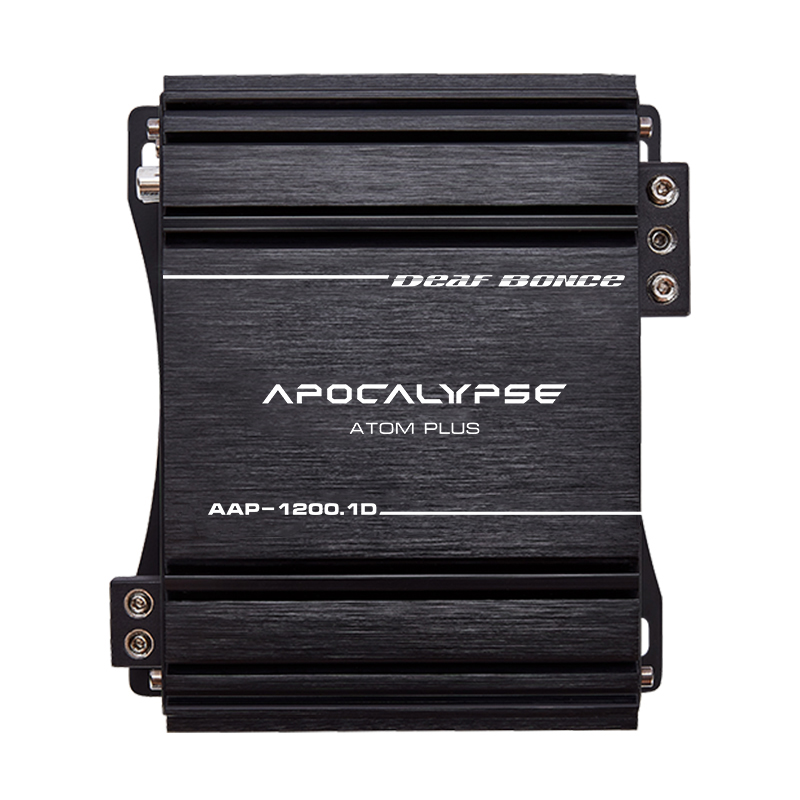

Deaf Bonce Apocalypse AAP-1200.1D Atom Plus Monoblock Amplifier
Deliver unrelenting bass output to your subwoofers with the Deaf Bonce Apocalypse AAP-1200.1D Atom Plus, a high-efficiency Class D monoblock amplifier built for massive SPL performance in a micro-sized footprint. Powered by Deaf Bonce’s signature Atom Plus circuitry, this compact monoblock generates up to 1180 Watts RMS at 1 Ohm (14.4V) and 1040 Watts RMS at 1 Ohm (12.0V), making it an ideal choice for high-power single or dual subwoofer builds requiring maximum output with minimal electrical strain.
Key Features & Highlights
-
1180W RMS Monoblock Output: Delivers high continuous output up to 1180 Watts RMS @ 1 Ohm, 730 Watts RMS @ 2 Ohms, or 420 Watts RMS @ 4 Ohms.
-
Atom Plus Class D Technology: Advanced high-efficiency architecture optimizes power conversion, maintaining cool operational temperatures and reducing current draw on your vehicle’s alternator.
-
Wide Crossover Tuning Range: Built-in Low Pass Filter (35 Hz – 180 Hz) and Subsonic Filter (15 Hz – 50 Hz) protect subwoofers from damaging low-end distortion and over-excursion.
-
High Signal Fidelity & Damping: Exceptional Damping Factor ($\ge 210$) and Signal-to-Noise Ratio ($\ge 100\text{ dB}$) keep low frequencies tight, punchy, and noise-free.
-
Compact Chassis Footprint: Micro-sized aluminum heatsink easily mounts under vehicle seats, inside trunk panels, or in stealth audio installations.
-
Remote Bass Controller Included: Includes a wired remote bass knob to easily fine-tune sub-bass levels directly from the driver’s seat.
Technical Specifications
| Specification | Value |
| Model | Apocalypse AAP-1200.1D Atom Plus |
| Series | Apocalypse |
| Amplifier Class | Class D |
| Channels | 1 (Monoblock) |
| RMS Power @ 1 Ohm (14.4V) | 1180 Watts |
| RMS Power @ 1 Ohm (12.0V) | 1040 Watts |
| RMS Power @ 2 Ohm (14.4V) | 730 Watts |
| RMS Power @ 4 Ohm (14.4V) | 420 Watts |
| Frequency Response | 15 Hz – 180 Hz |
| Low Pass Filter (LPF) | 35 Hz – 180 Hz |
| Subsonic Filter | 15 Hz – 50 Hz |
| Crossover Slope | 12 dB/Oct |
| Signal-to-Noise Ratio (SNR) | \ge 100\text{ dB} |
| Damping Factor | \ge 210 |
| Operating Voltage | 9V – 15V DC |
| Power Input Terminals | 4 Gauge |
| Speaker Output Terminals | 8 Gauge |
| Dimensions (W × L × H) | 4.92″ × 8.58″ × 2.50″ (125 × 218 × 63.5 mm) |
Package Includes
-
1 × Deaf Bonce Apocalypse AAP-1200.1D Atom Plus Monoblock Amplifier
-
1 × Remote Bass Controller with Cable
-
1 × Mounting Hardware Kit
-
1 × User Manual & Warranty Card
